One of the prerequisites of producing quality wires efficiently, is using the drawing dies having the right profiles suited to the process. By using dies produced at the right profiles, you can,
- improve the lubricant pick-up,
- increase the die lives and
- increase the drawing speeds
and they all contribute to the production efficiency.

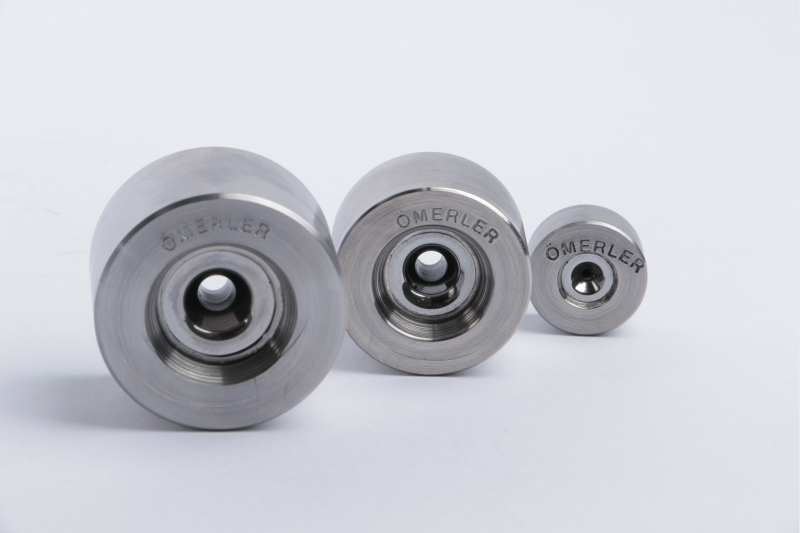

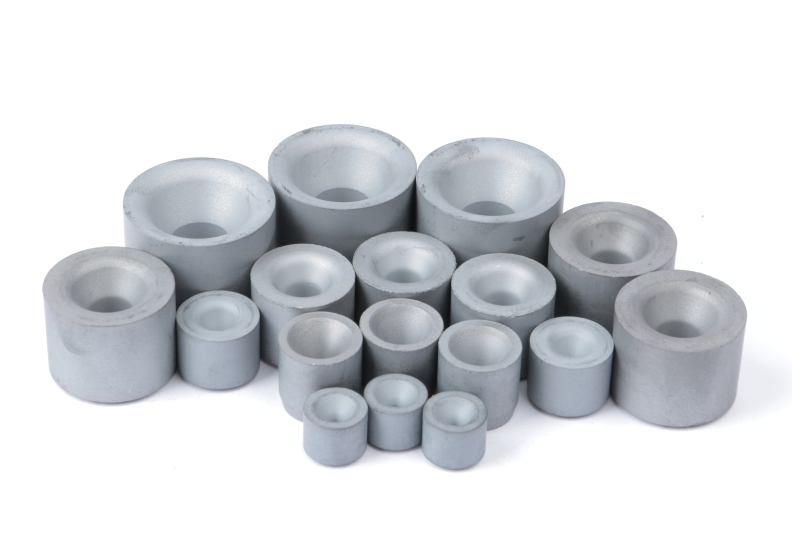

Taking these facts into consideration, OMERLER has begun to produce quality tungsten carbide wire drawing dies in 1995. Being aware of the benefits of using the correct die profiles, OMERLER studies the processes of his customers first, in order to determine the die profile suited the process. In other words, the die production at OMERLER begins with selecting the right die profiles.
You can improve your die lives and increase your production efficiency, by using OMERLER dies in your process.
PRODUCTION PROGRAM |
||
ISO STANDARDS |
||
NIB SIZE (mm) |
CASING SIZE (mm) |
HOLE SIZE (mm) |
10 x 8 |
28 x 16 |
0.60 – 1.20 |
43 x 27 |
||
12 x 10 |
28 x 16 |
0.60 – 2.00 |
43 x 27 |
||
14 x 12 |
43 x 27 |
0.70 – 3.00 |
16 x 13 |
43 x 27 |
0.80 – 5.00 |
53 x 35 |
||
20 x 17 |
43 x 27 |
2.00 – 6.50 |
53 x 35 |
||
25 x 20 |
53 x 35 |
6.50 – 9.00 |
30 x 24 |
53 x 35 |
9.00 – 12.00 |
75 x 40 |
||
USA STANDARDS |
||
NIB SIZE (mm) |
CASING SIZE (mm) |
HOLE SIZE (mm) |
R5 (16x15) |
43 x 27 |
0.80 – 6.00 |
53 x 35 |
||
